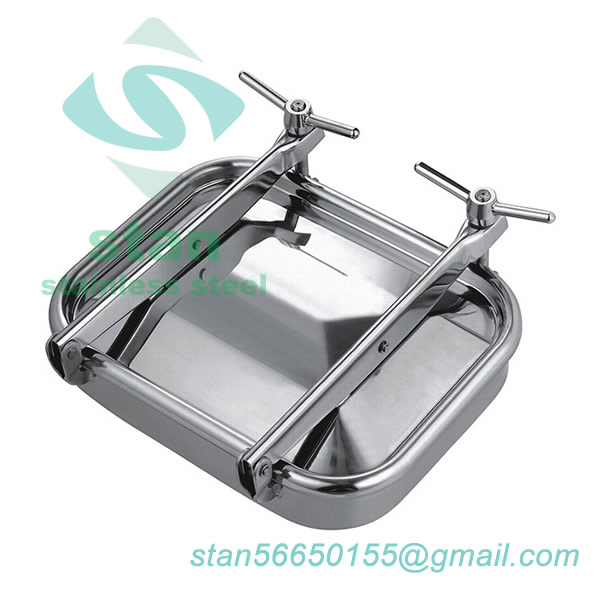

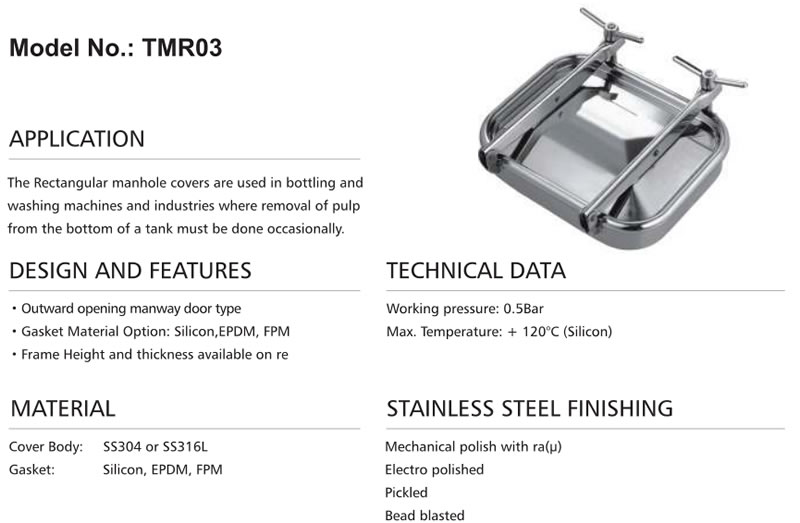

TMR03 Rectangular Manhole Cover

Application: TMR03 Series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access and monitoring to the interior of the tank required.

Application

TMR03 Series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access and monitoring to the interior of the tank required.

Materials

  • Body Materials: AISI-304 or AISI-316L
  • Handwheel: Nylon or SS304
  • Gasket Material:Silicon, EPDM, FRM

Manhole seat and gasket  comply with FDA 21CFR177.2600

Standard Design

  • Available in size: 530×430mm
  • Standard height: 80mm, or specific height upon requirement
  • Standard thickness: 8mm
  • Outward Opening
  • Installation on the side surface of tank

Technical Specification

  • Max. pressure: 14psi (1bar)
  • Temperature range: 14 ~ 248°F (-10 ~ 120°C), Silicon
  • Surface treatment: mirror inside, stain or mirror outside

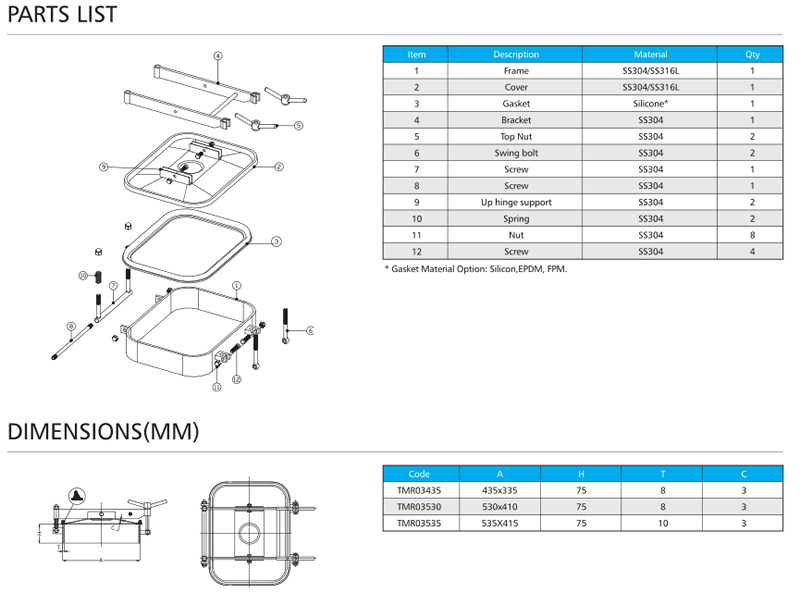

Drawings

Drawings

Drawings
