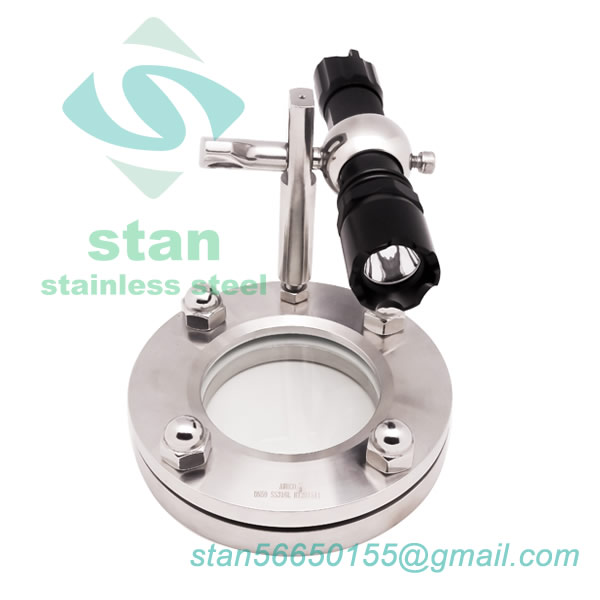

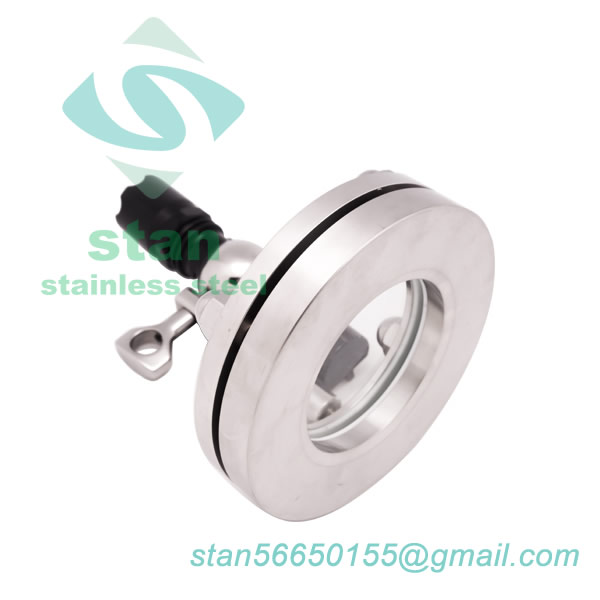

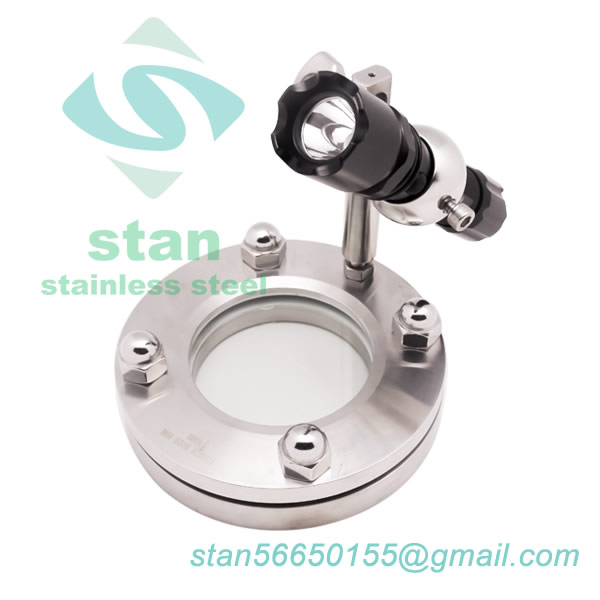

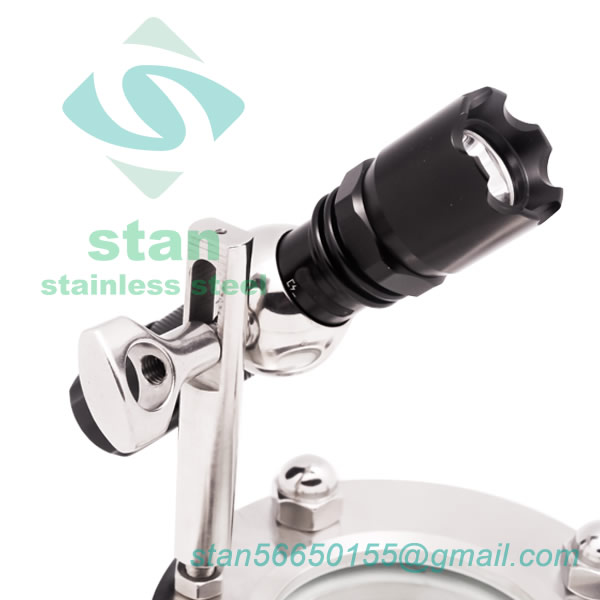

TSL Flange Type Sight Glass with Light Indicator
TSL Flange Type Light Indicator Sight Glass TSL Flange Type Sight Glass with Light Indicator

Application

TSL Series flange type sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc. For it is convenient to view the condition of equipment running state and system work state.

Materials

  • Body Materials: AISI-304 or AISI-316L
  • Tempered glass
  • Gasket Material:Silicon, EPDM, FRM

Seat and gasket  comply with FDA 21CFR177.2600

Standard Design

  • Available in size from 1"-4", DN25-DN100 or others upon requirement
  • Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
  • End connections: butt-welded, sanitary clamp, or others upon request
  • Vertical or horizontal installation
  • 360° view angle

Technical Specification

  • Temperature range: 14 ~ 248°F (-10 ~ 120°C), Silicon
  • Surface treatment: CNC machining
