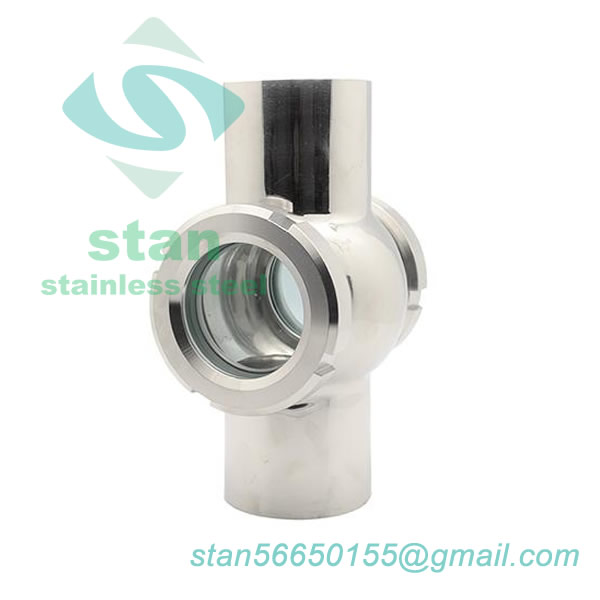

TSE Cross Sight Glass


TSE Series cross sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc. For it is convenient to view the condition of equipment running state and system work state.


  • Body Materials: AISI-304 or AISI-316L
  • Tempered glass
  • Gasket Material:Silicon, EPDM, FRM

Seat and gasket  comply with FDA 21CFR177.2600

Standard Design

  • Available in size from 1"-4", DN25-DN100 or others upon requirement
  • Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
  • End connections: butt-welded, sanitary clamp, or others upon request
  • Vertical or horizontal installation
  • 360° view angle

Technical Specification

  • Temperature range: 14 ~ 248°F (-10 ~ 120°C), Silicon
  • Surface treatment: mirror polished inside, stain polished outside
