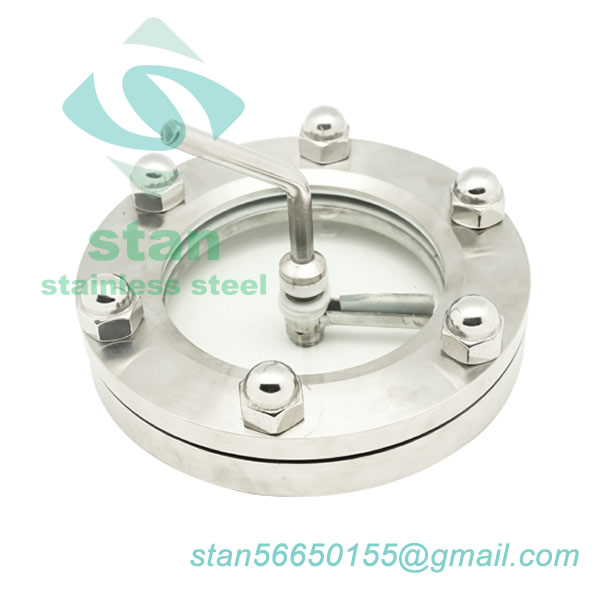

TSB Flange Type Sight Glass with Brush
TSB Series flange type sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc. For it is convenient to view the condition of equipment running state and system work state.
Application
TSB Series flange type sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc. For it is convenient to view the condition of equipment running state and system work state.
Materials
- Body Materials: AISI-304 or AISI-316L
- Tempered glass
- Gasket Material:Silicon, EPDM, FRM
Seat and gasket comply with FDA 21CFR177.2600
Standard Design
- Available in size from 1"-4", DN25-DN100 or others upon requirement
- Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
- End connections: butt-welded, sanitary clamp, or others upon request
- Vertical or horizontal installation
- 360° view angle
Technical Specification
- Temperature range: 14 ~ 248°F (-10 ~ 120°C), Silicon
- Surface treatment: CNC machining
