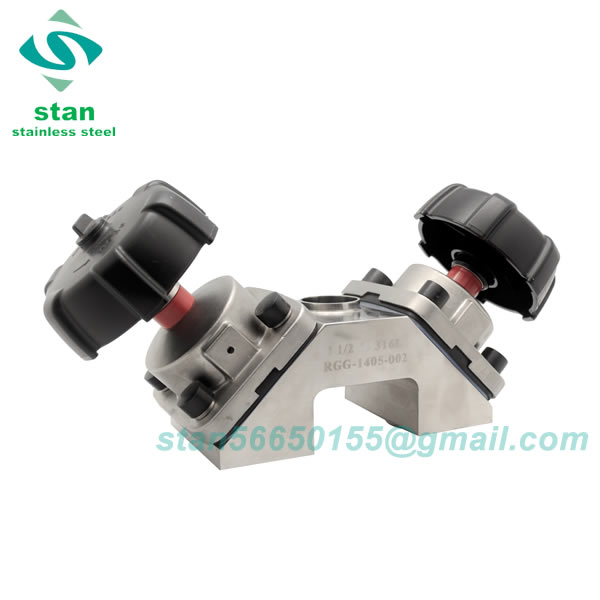

VDZ-U32A Multi-ports Diaphragm Valve

VDZ-U32A series diaphragm valve with forged body, specially designed for using on food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties. • Forged Body • Body Materials: AISI-316L • Membrane Material: EPDM + PTFE or EPDM • Size Available: 3/4"-21/2" or DN20-DN65

Application

VDZ-U32A series diaphragm valve with forged body, specially designed for using on food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.

Materials

  • Body: AISI-316L
  • Membrane: EPDM+PTFE or EPDM

The seal materials comply with FDA177.2600 standard. Using proprietary technology, the diaphragm uses a combination of EPDM and PTFE, which is secured using SS bolts. The sealing part where contact with the medium is of PTFE material, it has good cold resistance -13°F (-25°C), excellent heat-resistance 482°F (+250°C), tolerance to most chemicals, and excellent abrasion resistance to medium flow.

Standard Design

  • Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
  • End connections: butt-welded, sanitary clamp, or others upon request
  • Body type: T-type tee, U type tee, Mini type, tank bottom type, etc.
  • Operation: manual or pneumatic
  • Manual options: plastic or stainless steel handwheel

Technical Specification

  • Max. working pressure: 147psi (10bar)
  • Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM
  • Inside polishing: Ra 16-32& micro;in (0.4 ~ 0.8µm)
  • Available for CIP/SIP.
