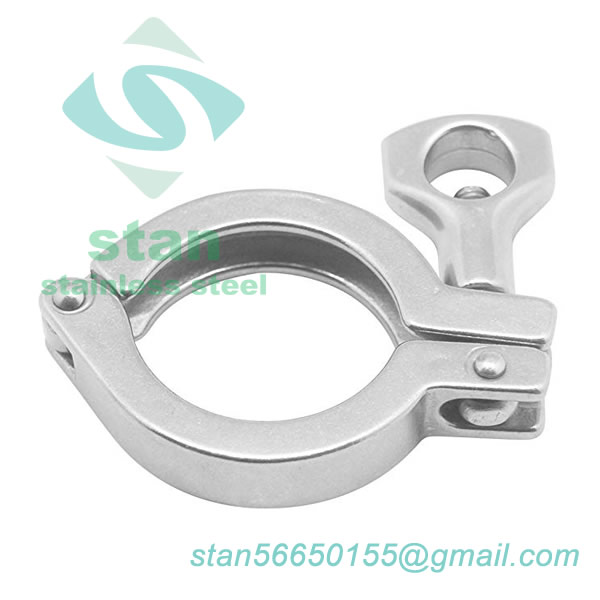

Stainless Steel 304 Single Pin Heavy Duty Tri Clamp with Wing Nut

Contact Now
Stainless Steel 304 Single Pin Heavy Duty Tri Clamp with Wing Nut
Heavy Duty Wing Nut Stainless Steel 304 Single Pin Tri Clamp

Application

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.

  • 1.5" Stainless Steel 304 Single Pin Heavy Duty Tri Clamp with Wing Nut 1 PACK UPC: 611677856588
  • 1.5" Stainless Steel 304 Single Pin Heavy Duty Tri Clamp with Wing Nut 10 PACK UPC: 670534105078
  • 1.5" Stainless Steel 304 Single Pin Heavy Duty Tri Clamp with Wing Nut 2 PACK UPC: 670534105054
  • 1.5" Stainless Steel 304 Single Pin Heavy Duty Tri Clamp with Wing Nut 5 PACK UPC: 670534105061
  • 2" Stainless Steel 304 Single Pin Heavy Duty Tri Clamp with Wing Nut 1 PACK UPC: 708210460514
  • 2" Stainless Steel 304 Single Pin Heavy Duty Tri Clamp with Wing Nut 10 PACK UPC: 708210460521
  • 2" Stainless Steel 304 Single Pin Heavy Duty Tri Clamp with Wing Nut 2 PACK UPC: 708210460538
  • 2" Stainless Steel 304 Single Pin Heavy Duty Tri Clamp with Wing Nut 5 PACK UPC: 708210460545
  • 3" Stainless Steel 304 Single Pin Heavy Duty Tri Clamp with Wing Nut 1 PACK UPC: 708210460552

Materials

  • Body: AISI-304, 316L

Standard Design

  • Size available: 1/2"-8" or DN10-DN200
  • Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
  • End connections: Weld or Tri-clamp

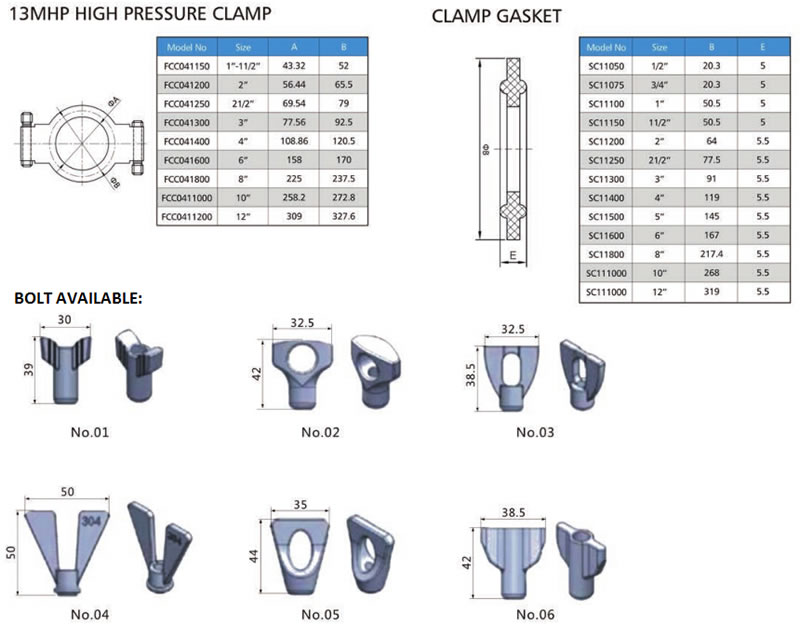

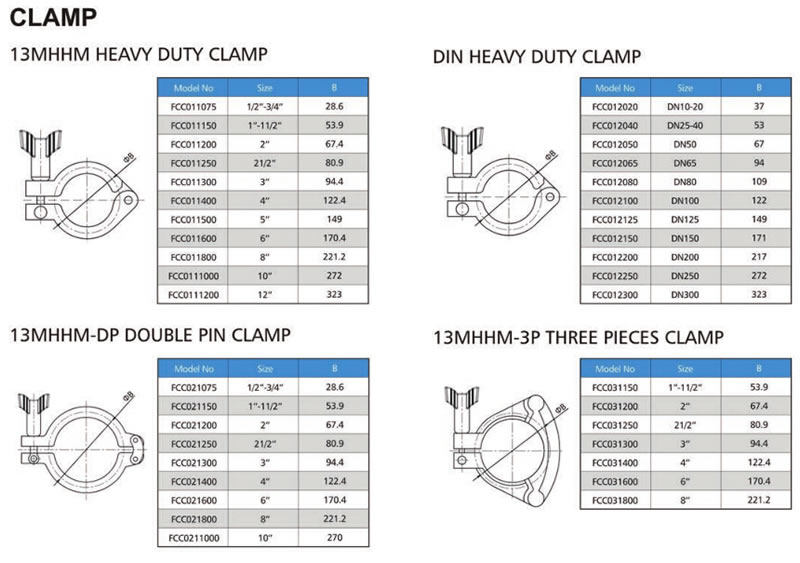

Drawing

CLAMPCLAMP
