VCU Union Type Check Valve
VCU Series Prevents the fluid from flowing back and ensures that if flows in only one direction
It can be used to prevent the loss of prime of the pump and to avoid pipe-hammering in the food-processing, beverages, wine-making, oil-making, cosmetics, pharmaceutical and chemical industries
Application
VCU Series Prevents the fluid from flowing back and ensures that if flows in only one direction
It can be used to prevent the loss of prime of the pump and to avoid pipe-hammering in the food-processing, beverages, wine-making, oil-making, cosmetics, pharmaceutical and chemical industries
Material
- Materials: AISI304 316L
- The seal materials comply with FDA177.2600 standard.
Standard Design
- Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE..
Technical Specification
- Size available: 1", 1 1/2", 2" 2 1/2", 3", 3.5, 4”
- Max. working pressure: 147psi (10bar)
- Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM
- Inside polishing: Ra 16-32μin (0.4 ~ 0.8μm)
- Connections: Weld, Thread, Clamp, DIN, SMS, RJT, IDF, ISO

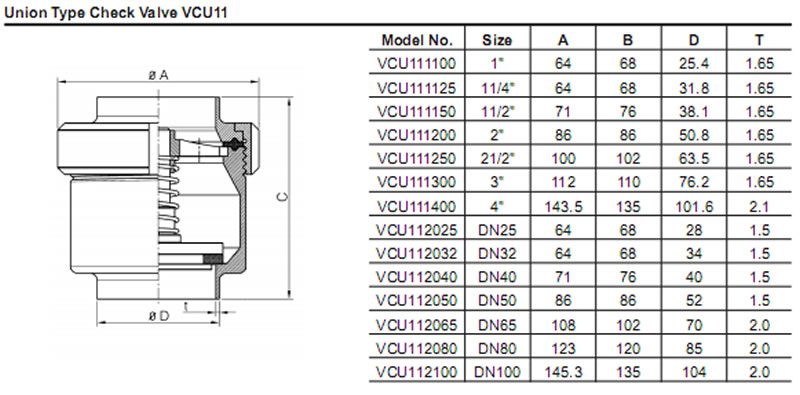

Drawing
