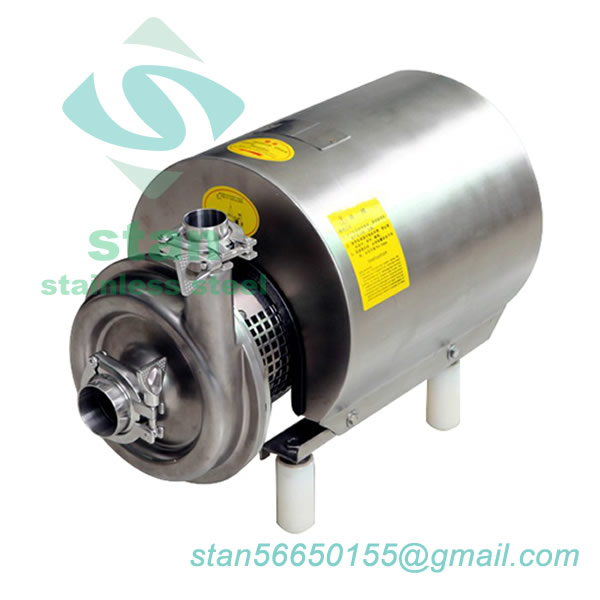

Centrifugal Pump
The PC Series centrifugal pump is your solution to a lower cost of ownership while providing the flexibility your operations need. Its stainless steel construction provides the durability, integrity, and absolute quality required for your sanitary fluid transfer operations.
Application
The PC Series centrifugal pump is your solution to a lower cost of ownship while providing the the flexibility your operations need. Its stainless steel construction provides the durability, intergrity and absolute quality required for your sanitary fluid transfer operations.
Materials
- Body Materials: AISI-304 or AISI-316L
- Gasket Material:EPDM
Technical Specification
- Model No.:PC
- Max. Discharge Head:40m
- Max. Flow:120m³/h
- Max. Revolution:2900r/min
- Temperature Range:-20~+135℃(EPDM)
- Max. Inlet Pressure:58Psi/4Bar
- Max. Outlet Pressure:94Psi/6.5Bar
- Supply pressure for air actuator: 70 ~ 115psi
- Voltage:AC 220V, 380V, 460V, 690V, 50HZ, 60HZ
- Standards: DIN, SMS, ISO/IDF, BS/RJT, ASME/BPE
- End Connections: Clamp, Union, Butt-weld, or others upon request
States When Ordering
- Pump type
- Voltage and frequency
- Material
- Connections
- Flow rate, pressure and temperature
- Density and viscosity of products
- Other requirements
