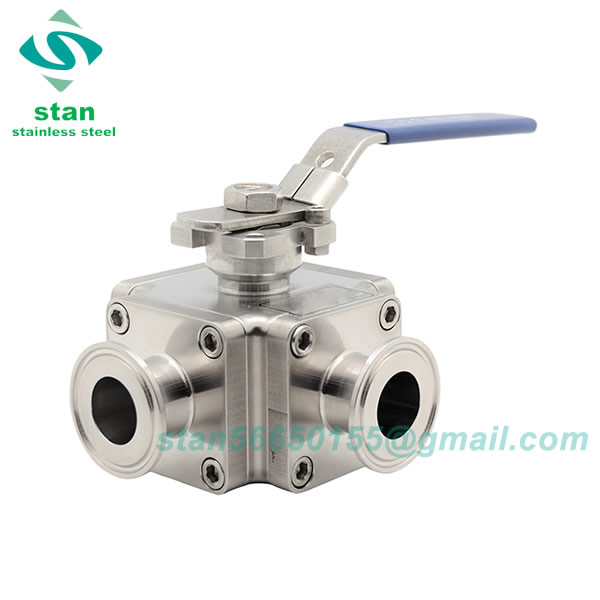

VFT Three Way Ball Valve

VFT series ball valves,no matter manually or automatically, the ball valves are used to transfer controlling the materials. Which extensively use to food,beverage,pharmacy,cosmetics and chemical industries.

Application

VF series ball valves,no matter manually or automatically, the ball valves are used to transfer controlling the materials. Which extensively use to food,beverage,pharmacy,cosmetics and chemical industries.

Options:

  • Actuator: Manual or Pneumatic
  • Body Structure: Three way, cross
  • Connection Type: Weld,Clamp,Female,Flange,etc
  • Standards: DIN, SMS, ISO/IDF, BS/RJT, ASME/BPE

 Materials

  • Materials: AISI-304
  • Size: 1/2''
  • FDA seal
  • Valve seat: PTFE
  • Gasket: Silicon,FPM,EPDM+PTFE

 Design Features

  • Maintenance free operation
  • Compact and portable
  • Small operating torque
  • Valve seals and gaskets comply with FDA 177.2600
  • Manual handle, pneumatic actuator, electric actuator are interchangeable.

Technical Specification

  • Sizes available from DN15-1/2" to DN100-4"
  • Max. working pressure (PTFE): 10bar (147psi)
  • Temperature range (PTFE): -20 ~ 350°F
  • End connections: sanitary clamp, butt-welded, threaded, flanged, I-line or others on request.
  • Surface treatment: Ra 16 ~ 32μin (0.4 ~ 0.8μm)
  • Supply pressure for air actuator: 70 ~ 115psi
