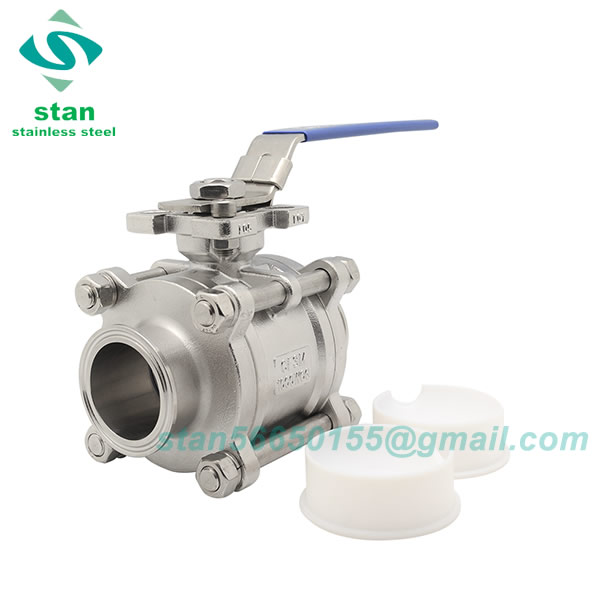

VFP Three Pieces Non-Retention Manual Ball Valve
VFP series 3-piece sanitary ball valve combines tube full port construction with a variety of sanitary end connections to deliver outstanding performance in high purity applications. The valve's uniform bore diameter and polished internal surfaces improve flow characteristics and eliminate pooling of potential contaminants.
Application
VFP series 3-piece sanitary ball valve combines tube full port construction with a variety of sanitary end connections to deliver outstanding performance in high purity applications. The valve's uniform bore diameter and polished internal surfaces improve flow characteristics and eliminate pooling of potential contaminants.
Materials
- Materials: AISI-304
- Size: 1/2''
- Valve seat: cavity filled Teflon (PTFE)
Design Features
- Full port design
- 3-Piece swing-in-place construction
- With or without mounting pad
- With or without locking device on handle
- Polish to custom specifications
Technical Specification
- Sizes available: 1/2", DN15-DN100
- Max. working pressure (PTFE): 1000psi (1/2" ~ 1"); 800psi (1 1/2" ~ 2"); 600psi (2 1/2" ~ 4")
- Temperature range (PTFE): -20 ~ 350°F

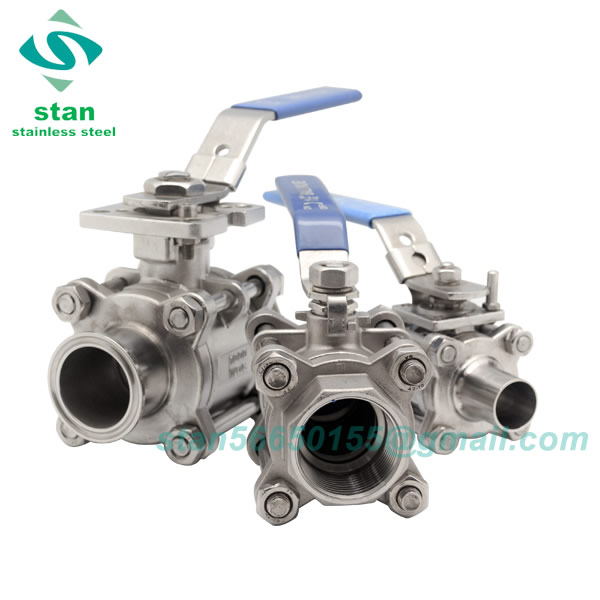

- End connections: sanitary clamp, butt-welded, extended tube ends, or others upon request.
- Cavity filled seats
