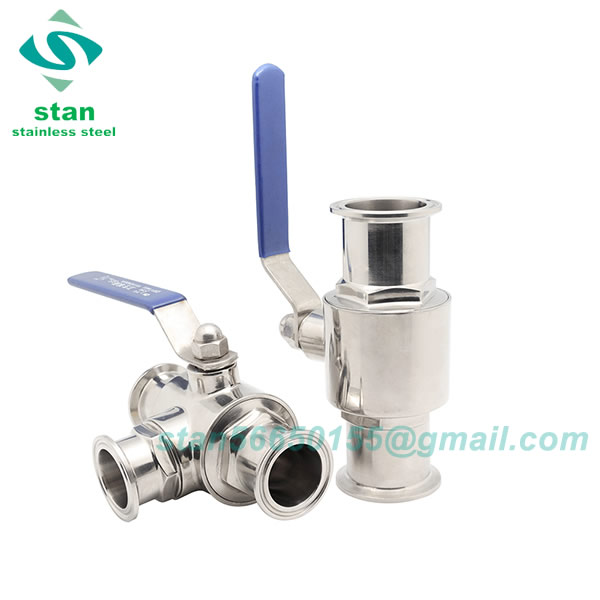

VFN Standard Ball Valve
VFN series standard ball valves are used to transfer controlling the materials. Which extensively use to food, beverage, pharmacy, cosmetics and chemical industries.
Application
VFN series standard ball valves are used to transfer controlling the materials. Which extensively use to food, beverage, pharmacy, cosmetics and chemical industries.
Materials
- Body Materials: AISI-304 or AISI-316L
- Gasket Material:Silicon, EPDM, VITON, NBR
Valve seat and gasket comply with FDA 21CFR177.2600
Standard Design
- Standard Avaliable: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
- Size Available: 1/2" to 4" or DN15-DN100
- End connection: Butt-weld, Clamp, Male, Nut, Liner or Flange or others upon request.
- Vavle Type: 2 way or 3 way
- Ball type: T type (default) or L type
- Actuator Available: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
- Manual handle, pneumatic actuator and electric actuator are interchangeable.
Technical Specification
- Max. pressure: 10bar (145psi)
- Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM
- Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
- Supply pressure for air actuator: 70 ~ 115psi
