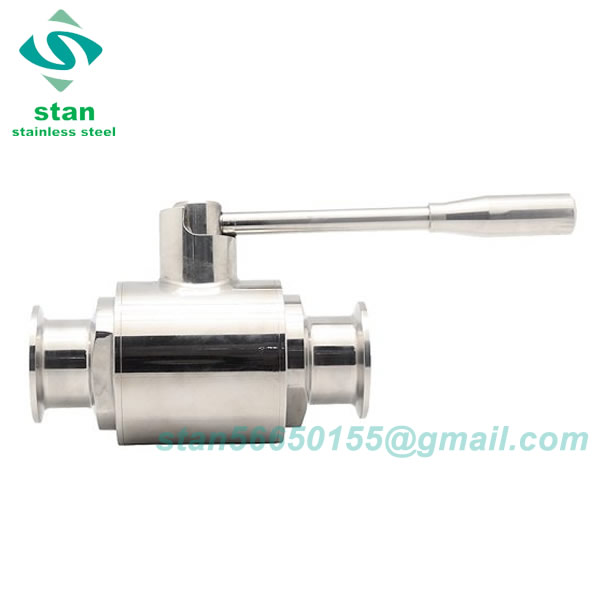

VFM Two Way Ball Valve

Application

VFM series ball valves are used to transfer controlling the materials. Which extensively use to food,beverage,pharmacy,cosmetics and chemical industries.

Materials

• Materials: AISI-304
• Size: 3/4''
• Seal Material: Silicon,EPDM,PTFE

Design Features

• Free of maintenance
• Compact and portable
• Small operating torque
• Gasket complies with PTFE FDA 177.2600
• Handle level can be installed on the side of the valve body,no matter of the flow direction
• It can be match with pneumatic and electric actuators
• Valve Type: One piece, Two piece, Three-piece, Butterfly ball type
• Cores Type: T type,L type,Direct type
• Material :AISI304,316L

Technical Specification

• Sizes available: 1/2" -4" , DN15-DN100
• Max. pressure: 10bar (147psi)
• Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM
• End connections: sanitary clamp, butt-welded, threaded, flange, I-line or others upon request
• Inside polish: Ra 32μin (0.8μm); Outside polish: CNC machining
• Supply pressure for air actuator: 70 ~ 115psi
