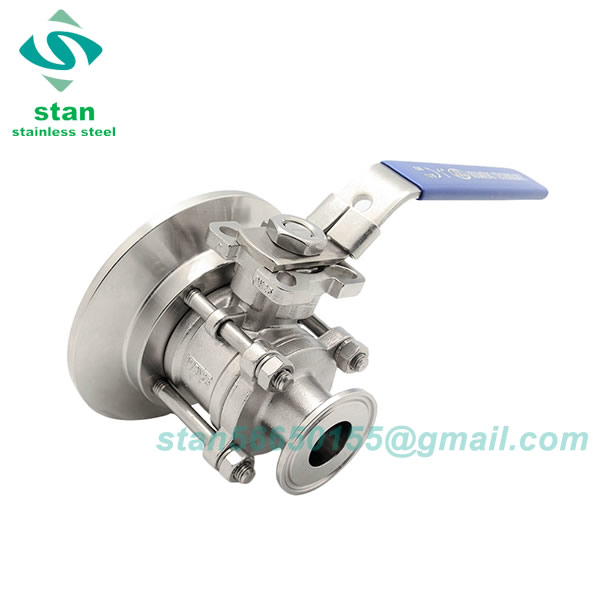

VFD Tank Bottom Ball Valve
VFD series ball valves,no matter manually or automatically, the ball valves are used to transfer controlling the materials. Which extensively use to food,beverage,pharmacy,cosmetics and chemical industries.
Application
VF series ball valves,no matter manually or automatically, the ball valves are used to transfer controlling the materials. Which extensively use to food,beverage,pharmacy,cosmetics and chemical industries.
Options:
- Actuator: Manual or Pneumatic
- Connection Type: Weld,Clamp,Female,Flange,etc
- Standards: DIN, SMS, ISO/IDF, BS/RJT, ASME/BPE
Materials
- Materials: AISI-304
- Size: 1/2''
- FDA seal
- Valve seat: PTFE
- Gasket: Silicon,FPM,EPDM+PTFE
Design Features
- Maintenance free operation
- Compact and portable
- Small operating torque
- Valve seals and gaskets comply with FDA 177.2600
- Manual handle, pneumatic actuator, electric actuator are interchangeable.
Technical Specification
- Sizes available from DN15-1/2" to DN100-4"
- Max. working pressure (PTFE): 10bar (147psi)
- Temperature range (PTFE): -20 ~ 350°F
- End connections: sanitary clamp, butt-welded, threaded, flanged, I-line or others on request.
- Surface treatment: Ra 16 ~ 32μin (0.4 ~ 0.8μm)
- Supply pressure for air actuator: 70 ~ 115psi
