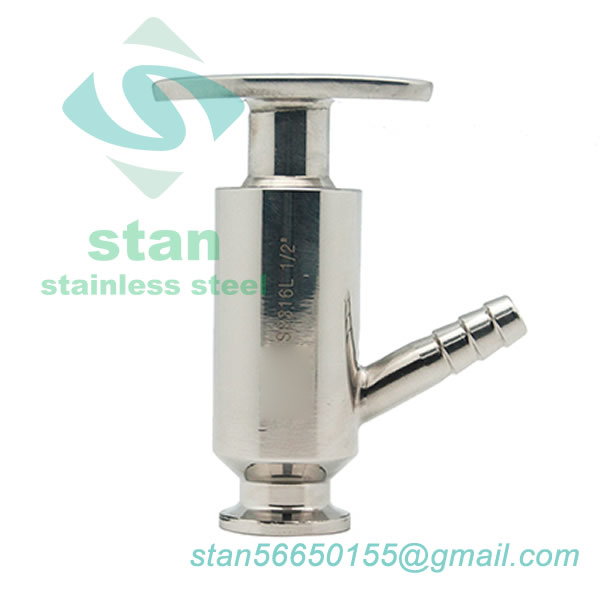

VSN Sampling Valve

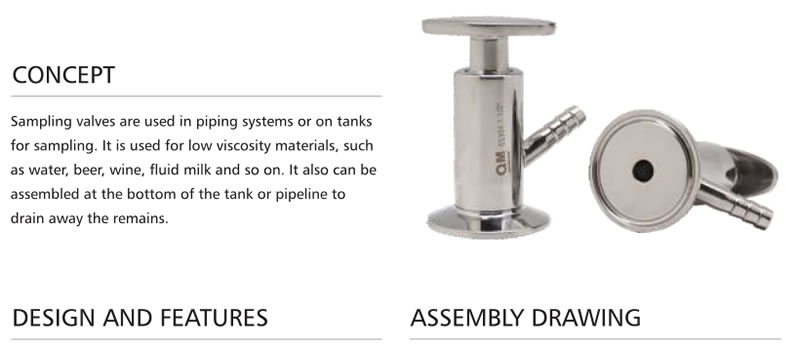

VSN series Sampling Valve mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains
Application
VSN series Sampling Valve mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains
Material
- Body: AISI-304 or AISI-316L
- Seal: PTFE
- Valve seat and gasket comply with FDA 21CFR177.2600
Standard Design
- Available Size: 1/4"-1"
- End connection: weld, triclamp or thread
- Handle: Elliptic type hand
Technical Specification
- Max. pressure: 10bar (145psi)
- Temperature range: 50 ~ 248°F (-10 ~ 120°C)
- Surface treatment: Ra 16 ~ 32μin (0.4 ~ 0.8μm)

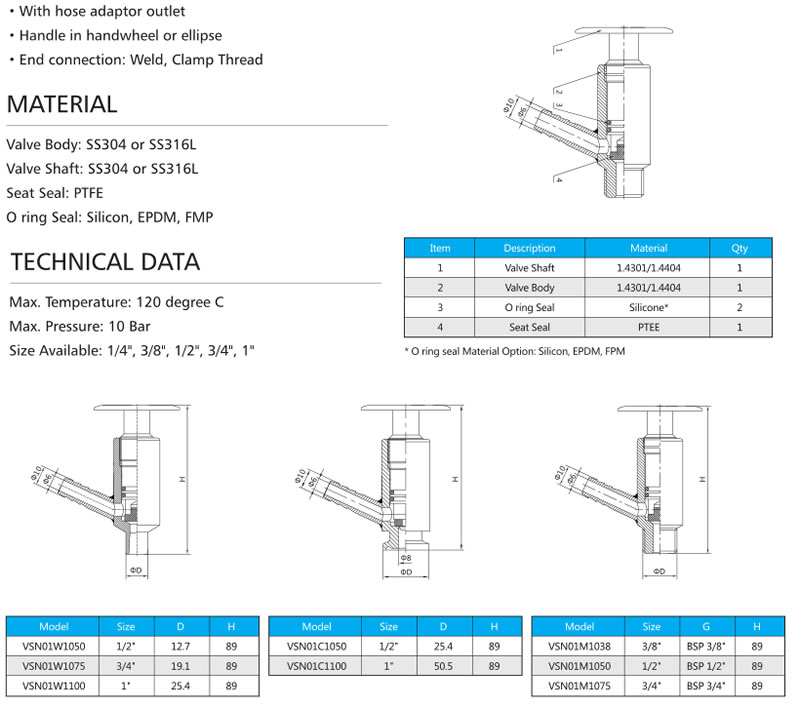

Drawings
