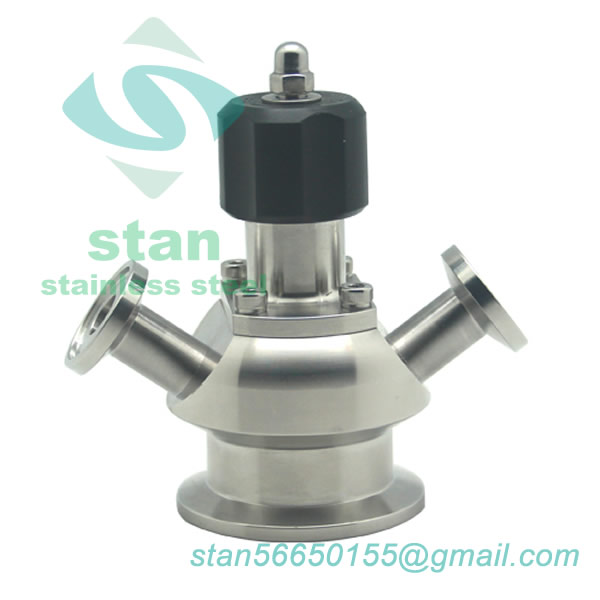

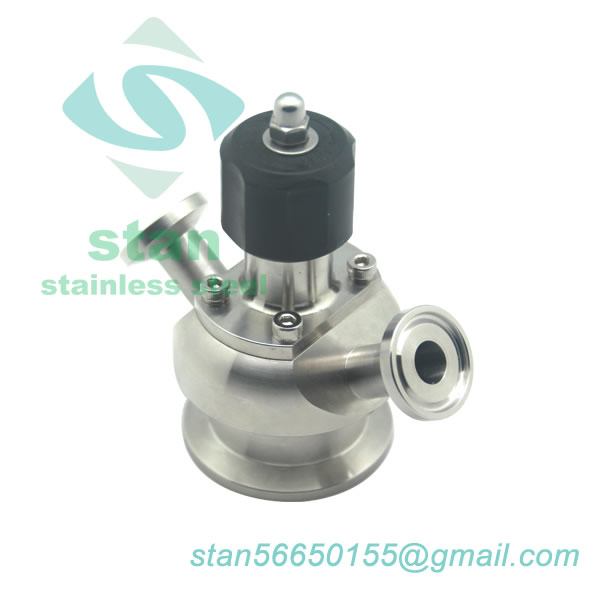

VSC Aseptic Sampling Valve
VSC series Aseptic Sampling Valve mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains
Application
VSC series Aseptic Sampling Valve mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains
Material
- Closed pad: EPDM
- Materials: AISI304 or AISI316L
- Valve seat and gasket: EPDM, comply with FDA 21CFR177.2600
Options
- Body material: AISI304 ,AISI316L
- Connections: Thread, Clamp, Weld
- Membrane: MVQ, EPDM
Design Features
- Various standards can be provided: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
- Sizes: 1/4”-1”
- The valve body can be customized with a wide selection of different connections.
- Handle: Decorative type handle, Elliptic type hand
Technical Specification
- Available in sizes from 1/4" to 1"
- Max. pressure: 10bar (145psi); DN25 ~ 100
- Temperature range: 50 ~ 248°F (-10 ~ 120°C), EPDM
- End connections: butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
- Surface treatment: Ra 16 ~ 32μin (0.4 ~ 0.8μm)
