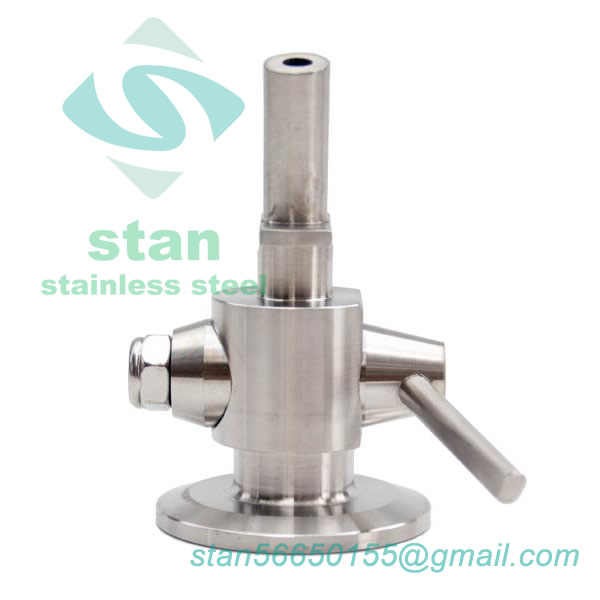

VSB Beer Sampling Valve
VSB series Beer Sampling Valve was designed for brewing industry with its easy usalbility, also wided used in beer pubs.
Application
VSB series Beer Sampling Valve was designed for brewing industry with its easy usalbility, also wided used in beer pubs.
Material
- Body: AISI-304 or AISI-316L
- Head: AISI-304 or AISI-316L
- Seal: EPDM or PTFE
- Valve seat and gasket comply with FDA 21CFR177.2600
Standard Design
- Available Size: 1/2" or 1"
- End connection: triclamp or weld
Technical Specification
- Max. pressure: 10bar (145psi)
- Temperature range: EPDM 32 ~ 266°F (0 ~ 130°C)
- Temperature range: PTFE 32 ~ 302°F (0 ~ 150°C)
- Surface treatment: Ra 16 ~ 32μin (0.4 ~ 0.8μm)
