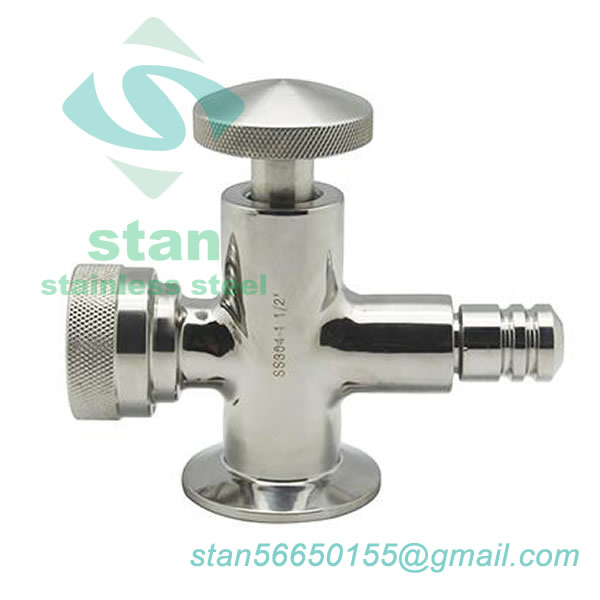

TLB Level Gauge with Sampling Valve

Application

TLB series level gauge is designed with a sampling valve, mainly applied to tank equipment to observe the condition of inside liquid and easier to collect liquid sample.

Materials

  • Body Materials: AISI-304 or AISI-316L
  • Gasket Material: Silicon, EPDM

Seat and gasket  comply with FDA 21CFR177.2600

Standard Design

  • Available in size: BSP or NPT male thread 1/4", 3/8", 1/2" 3/4" ; clamp diameter 25.4mm or 50.5mm
  • Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
  • End connections: thread, clamp, or others upon request
  • Transparent glass tube for liquid observation is upon request

Technical Specification

  • Temperature range: -4 ~ 275°F (-20 ~ 135°C), EPDM
  • Working Pressure: 14.5-145Psi (1-10Bar)
