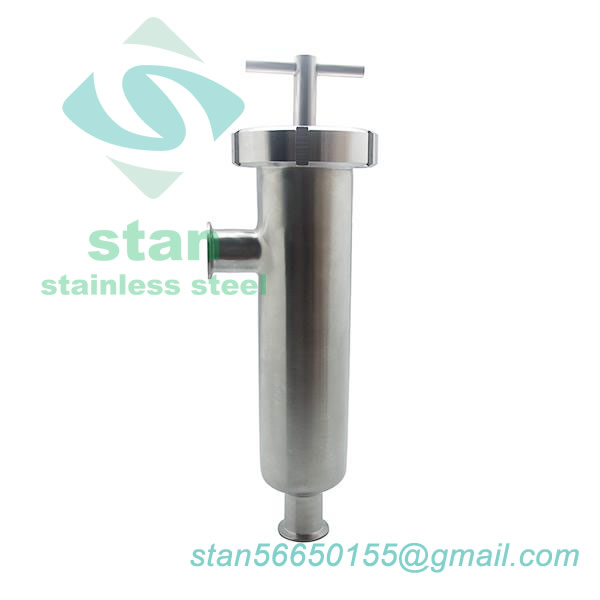

TFA Angle Type Filter

Application

TFA Series angle type filter is mainly used for filtering liquid with solid particles, protecting the pump, instruments and other devices to work properly.

Materials

• Body Materials: AISI-304 or AISI-316L
• Filter Screen: Metal Mesh, Perforated Plate
• Gasket Material: EPDM, NBR

Seat and gasket  comply with FDA 21CFR177.2600

Standard Design

• Available in size from 1"-4", DN25-DN100 or others upon requirement
• Standards: DIN,SMS, ISO / IDF, BS / RJT, ASME / BPE.
• End connections: butt-welded, sanitary clamp, or others upon request

Technical Specification

• Temperature range: -4 ~ 275°F (-20 ~ 135°C), EPDM
• Working Pressure: 14.5-145Psi (1-10Bar)

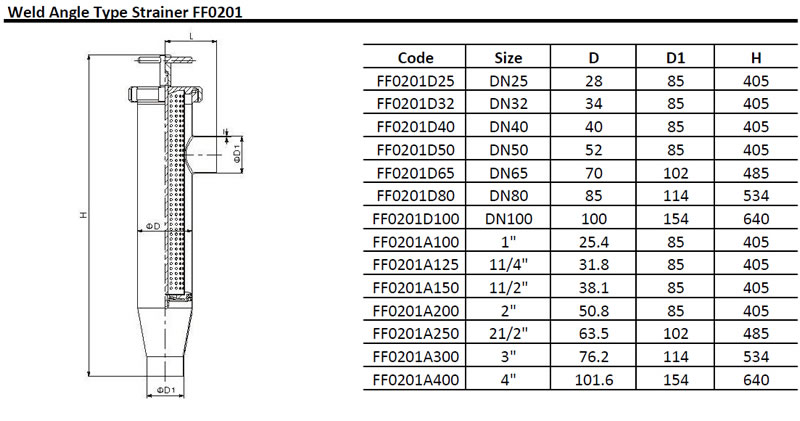

Drawings
