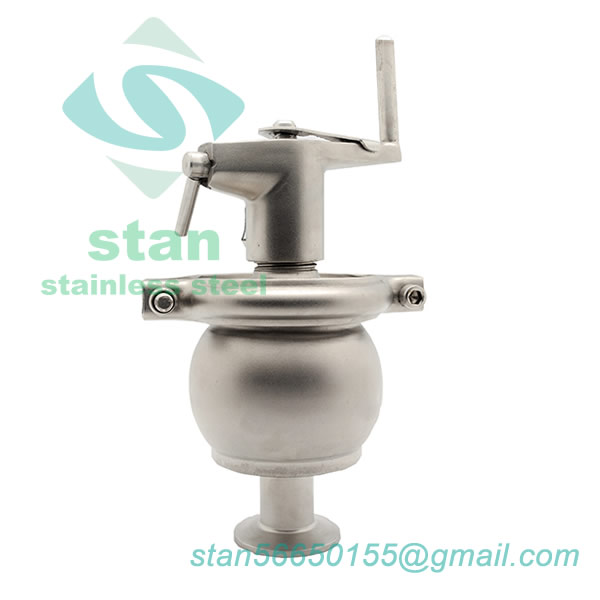

Wrench Handle Manual Divert Seat Valve

Contact Now
Wrench Handle Manual Divert Seat Valve

Application

VR series divert seat valve is a kind of manual hygienic single-seat valve, which is applied to a wide range of application in the food-processing industry, beverage production, pharmaceutical and fine chemicals industries

Material

  • Materials: AISI304 316L
  • The seal materials comply with FDA177.2600 standard.

Standard Design

  • Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
  • End connections: butt-welded, sanitary clamp, or others upon request

Technical Specification

  • Size available: 1", 1 1/2", 2" 2 1/2", 3", 3.5”, 4”
  • Max. working pressure: 147psi (10bar)
  • Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM
  • End connections: butt-welded, sanitary clamp, T-type tee, U type tee, Mini type, tank bottom type etc.
  • Inside polishing: Ra 16-32& micro;in (0.4 ~ 0.8μm)
  • Connection Type: Weld,Clamp,Thread,Union,Flange,etc
