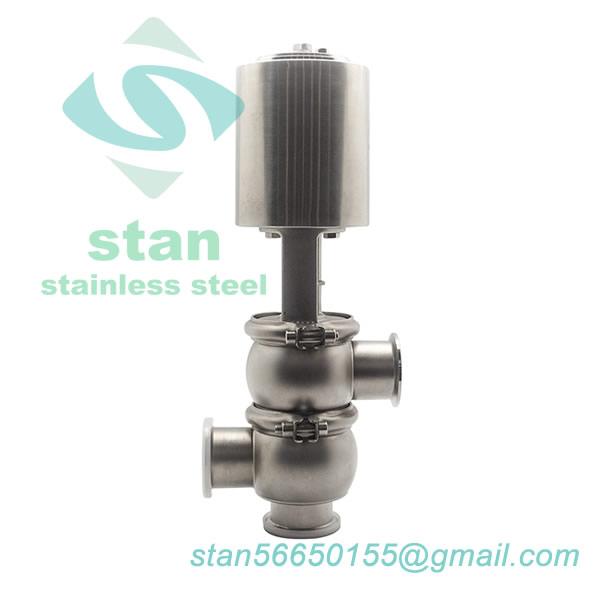

VR series divert seat valve is a kind of manual hygienic single-seat valve, which is applied to a wide range of application in the food-processing industry, beverage production, pharmaceutical and fine chemicals industries
- Materials: AISI304 316L
- The seal materials comply with FDA177.2600 standard.
- Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
- End connections: butt-welded, sanitary clamp, or others upon request
- Type: F, L/T,T/T,T/L
- Size available: 1", 1 1/2", 2" 2 1/2", 3", 3.5”, 4”
- Max. working pressure: 147psi (10bar)
- Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM
- End connections: butt-welded, sanitary clamp, T-type tee, U type tee, Mini type, tank bottom type etc.
- Inside polishing: Ra 16-32& micro;in (0.4 ~ 0.8μm)
- Connection Type: Weld,Clamp,Thread,Union,Flange,etc
