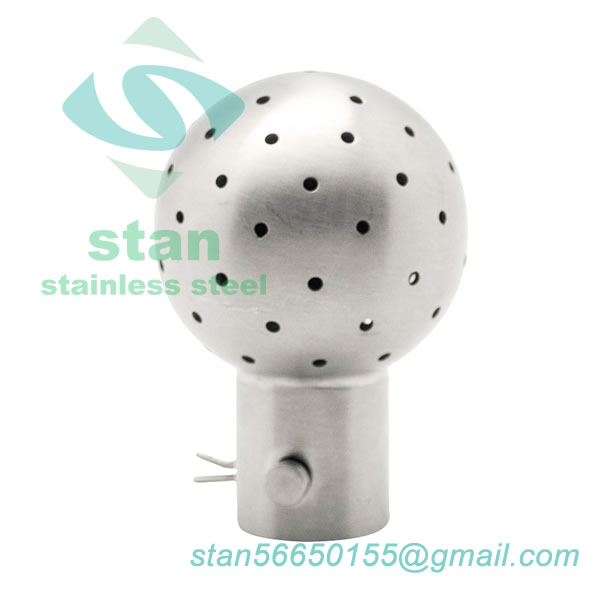

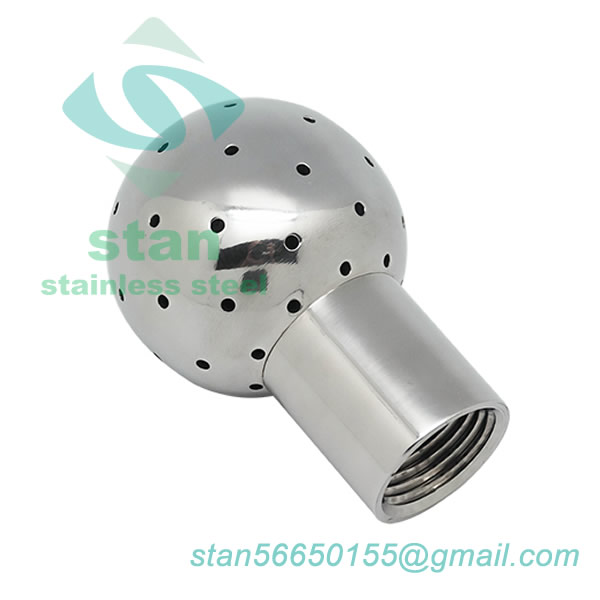

TCN Fixed Cleaning Ball

Application

TCN Series sanitary fixed cleaning ball is designed for general CIP Applications.

Materials

• Body Materials: AISI-304 or AISI-316L

Standard Design

• Available in size from 0.5"-2.5", DN15-DN65
• Standards: DIN, SMS, ISO / IDF
• End connections: butt-welded, clamp, thread, clip-on

Technical Specification

• Max Temperature: 284°F (140°C)
• Working Pressure: 14.5-50Psi (1-3.5Bar)
• Cleaning Radius: 3.2-10ft
• Finished: mirroir or stain

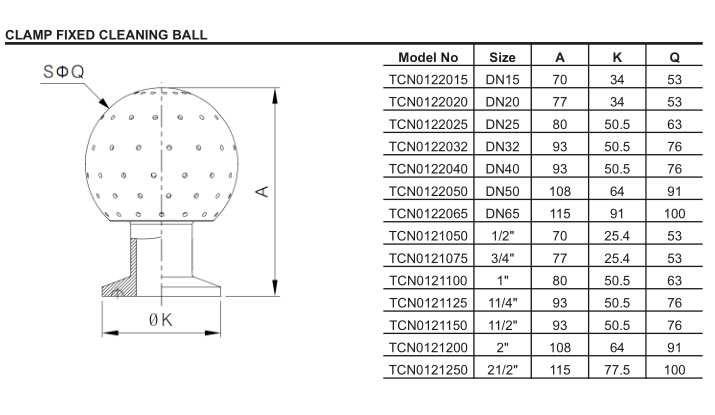

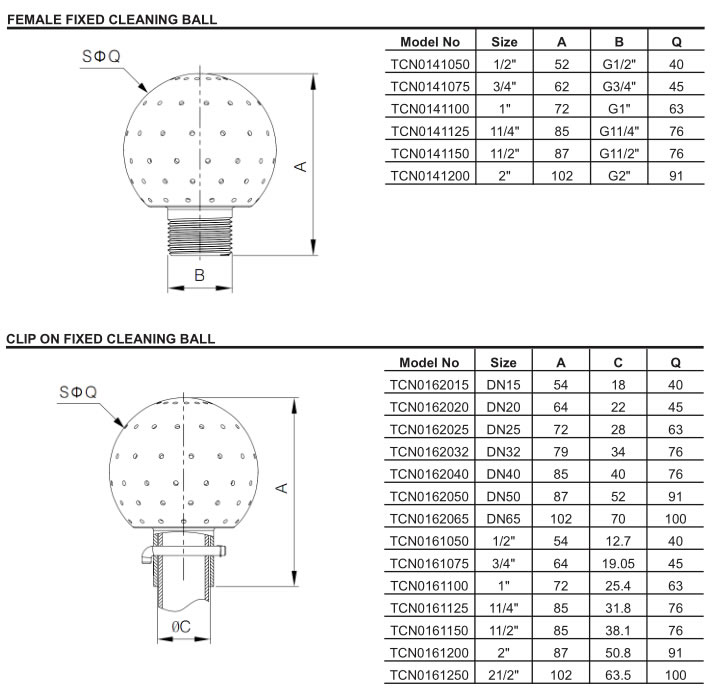

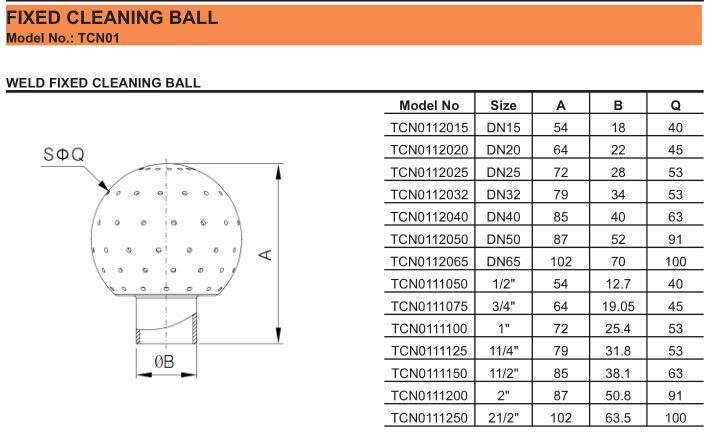

Drawing
