TCF Elliptical Rotary Cleaning Ball

Application

TCF Series Sanitary Rotary Cleaning Ball applies dual ball bearing design, is better for CIP application coverage and time saving.

Technical Specification

  • Max Temperature: 284°F (140°C)
  • Working Pressure: 14.5-50Psi (1-3.5Bar)
  • Cleaning Radius: 3.2-10ft
  • Finished: mirroir or stain

Detailed specifications on the drawing label

  • Available in size from 0.5"-2.5", DN15-DN65
  • Standards: DIN, SMS, ISO / IDF
  • End connections: butt-welded, clamp, thread, clip-on
  • Body Materials: AISI-304 or AISI-316L

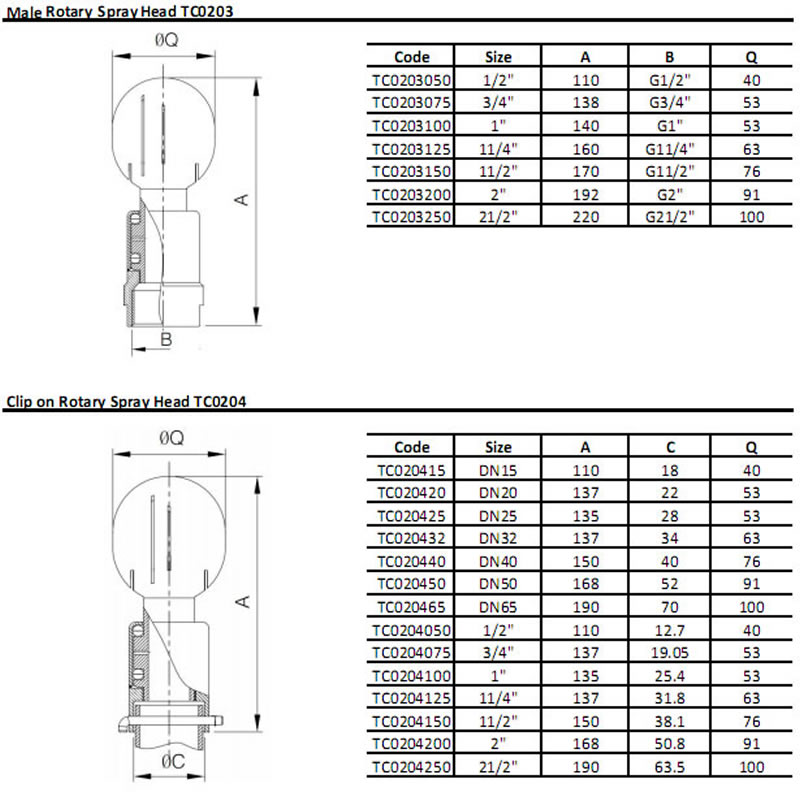

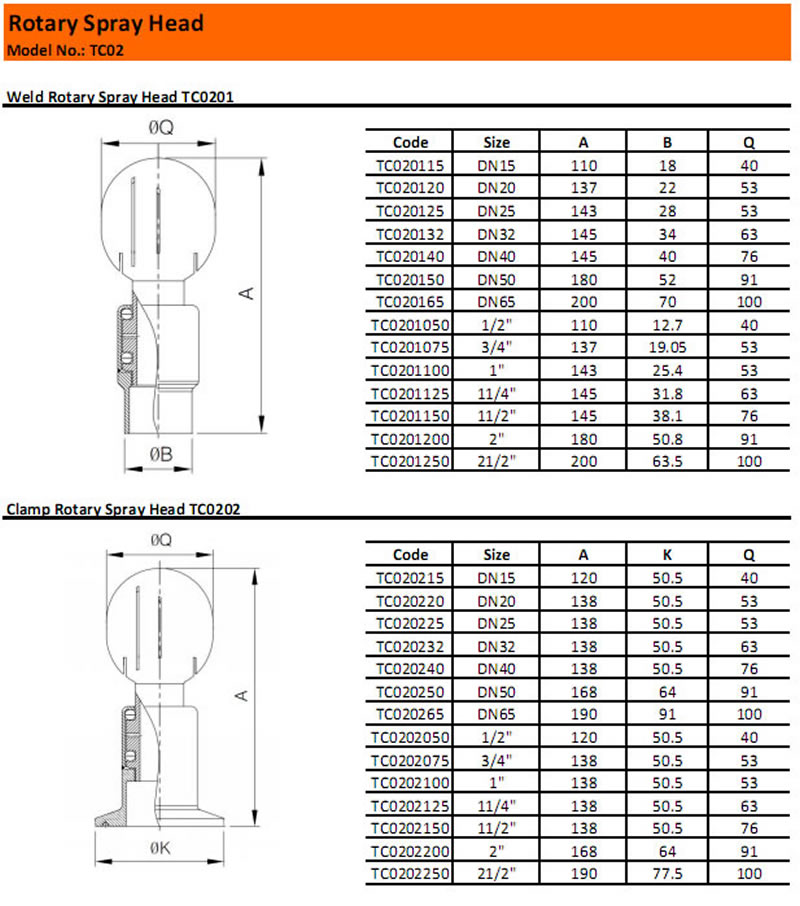

Drawing

Drawing

Drawing
