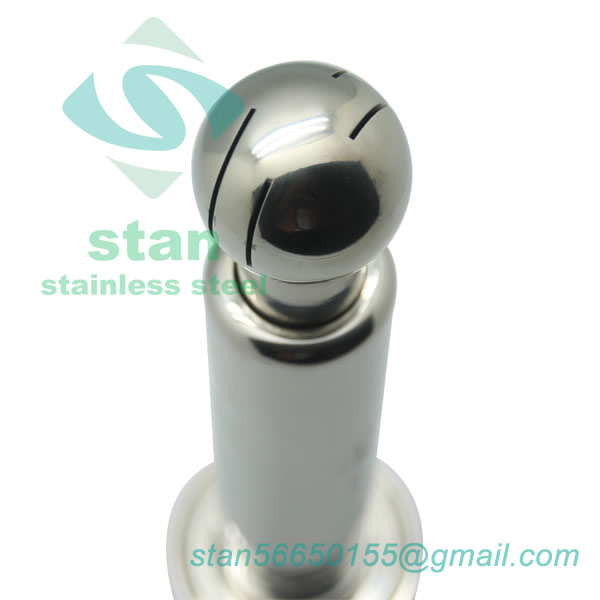

TCD Rotary Cleaning Ball with Double TC
TCD Series Sanitary Rotary Cleaning Ball is designed based on 'easy cleaning' principle, perfectly connected by TC on top of tank (tank vent port) while rotary spray ball extend inside tank for cleaning tasks. It could be removed from tank when cleaning tasks done.
Application
TCD Series Sanitary Rotary Cleaning Ball is designed based on 'easy cleaning' principle, perfectly connected by TC on top of tank (tank vent port) while rotary spray ball extend inside tank for cleaning tasks. It could be removed from tank when cleaning tasks done.
Materials
- Body Materials: AISI-304 or AISI-316L
Standard Design
- Available in size from 1/2"-2.5", DN15-DN65
- Standard total length: 250mm
- Standards: DIN, SMS, ISO / IDF

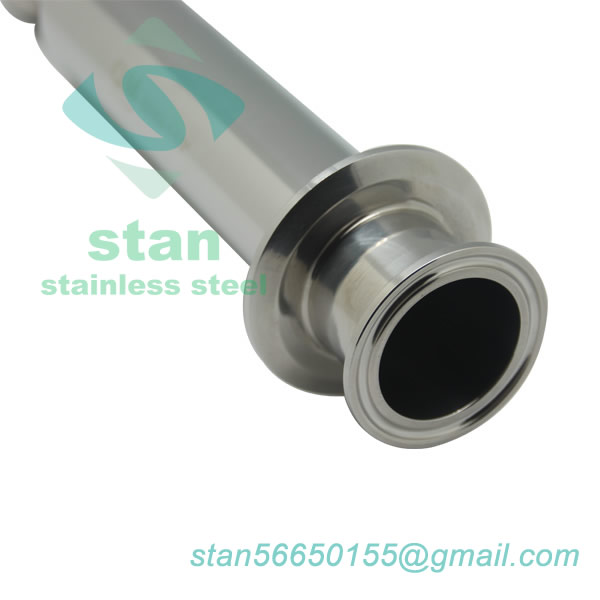

- End connections: tri clamp
Technical Specification
- Max Temperature: 284°F (140°C)
- Working Pressure: 14.5-50Psi (1-3.5Bar)
- Cleaning Radius: 3.2-10ft
- Finished: mirroir or stain

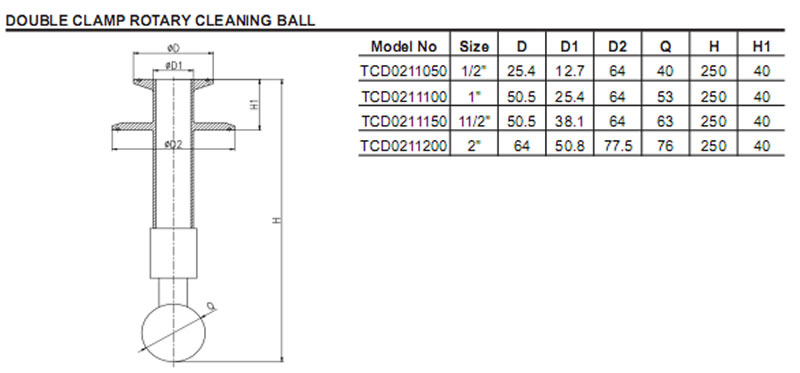

Drawing
