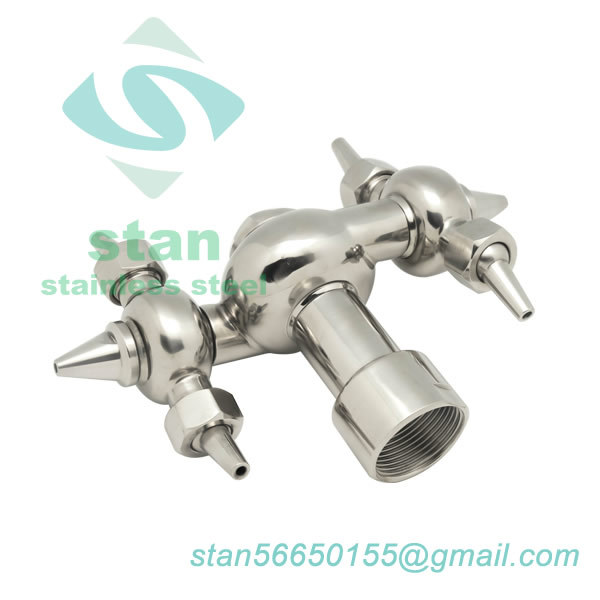

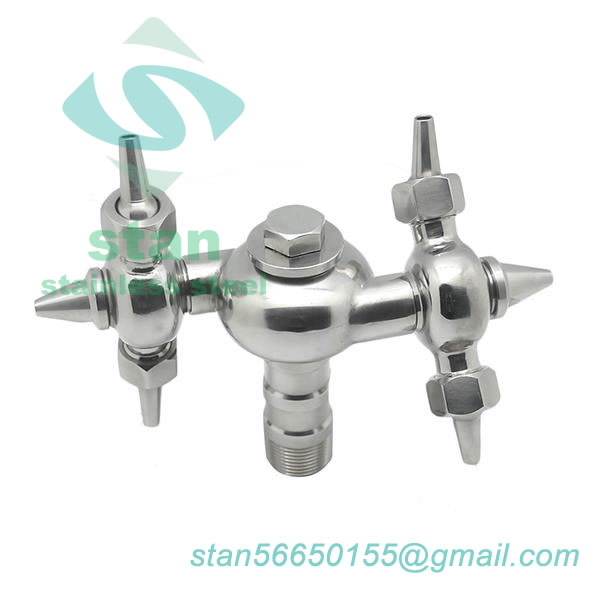

TCC Rotary Cleaner

Application

TCC Series Sanitary Rotary Cleaner was designed for high-performance CIP application required circumstances.

Materials

• Body Materials: AISI-304 or AISI-316L

Standard Design

• Available in size from 1"-2", DN15-DN65
• Standards: DIN, SMS, ISO / IDF
• End connections: thread or clip on

Technical Specification

• Max Temperature: 284°F (140°C)
• Working Pressure: 14.5-50Psi (1-3.5Bar)
• Cleaning Radius: 3.2-10ft
• Finished: mirroir or stain

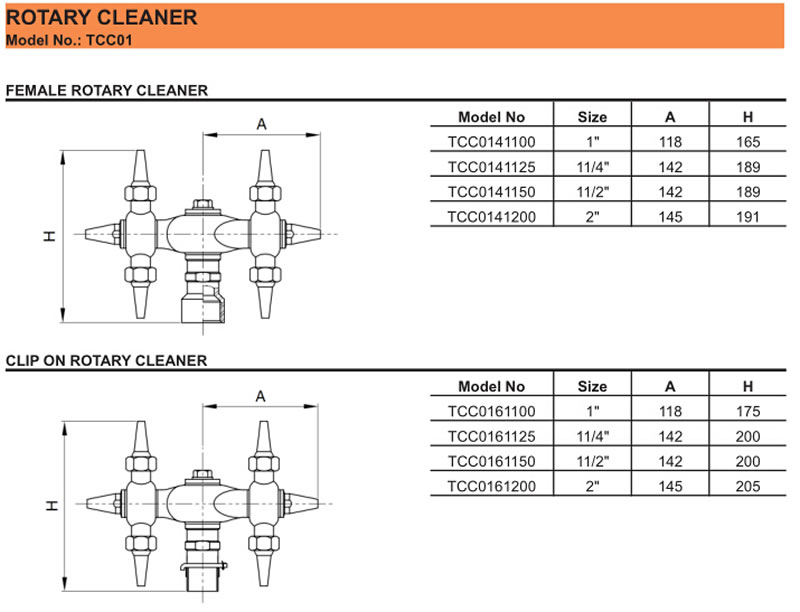

Drawing
