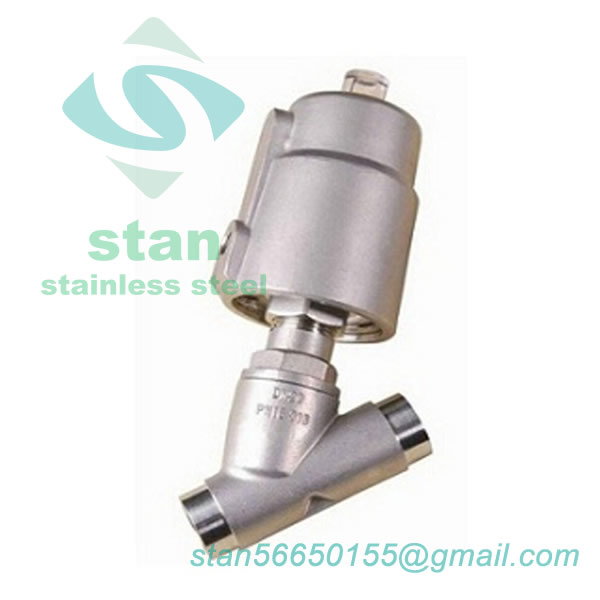

Sanitary Stainless Steel Pneumatical Welding Angle Seat Valve with Stainless Steel Actuator
According to the site condition has the following three kinds of control mode, the reasonable selection of the control ...
| Control type: | Normally close, normally open, double acting. |
| Cylinder material: | Stainless steel, polyamide. |
| Pneumatic accessories: | Limit switch, positioner, solenoid valve, filter relief-pressure valve, manual operating device. |
| Medium temperature: | PTFE: -30~+180ºc |
| F46 | -30~+220ºc |
| Ambient temperature: | -30~+80ºc |
| Nominal diameter: | DN15~DN100mm |
| Nominal pressure: | 1.0~1.6mpa |
| Connection: | Thread, flange, clamp, weld. |
| Body structure: | One-piece |
| Body material: | 304, 316, 316l. |
| Spool material: | 304, 316, 316l. |
| Seal material: | PTFE, F46. |
| Appliance medium: | Steam, water, air, oil, gas etc. |
